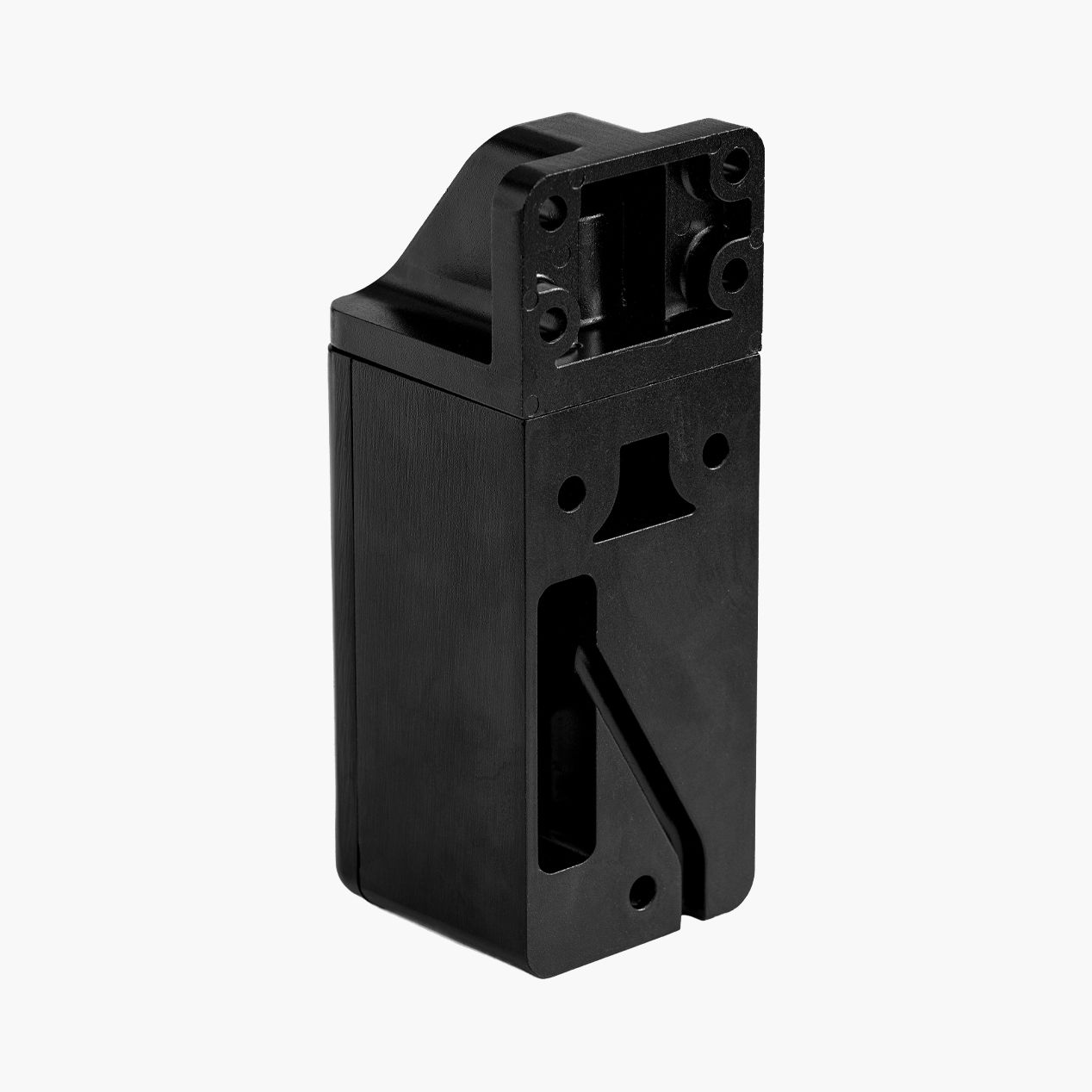

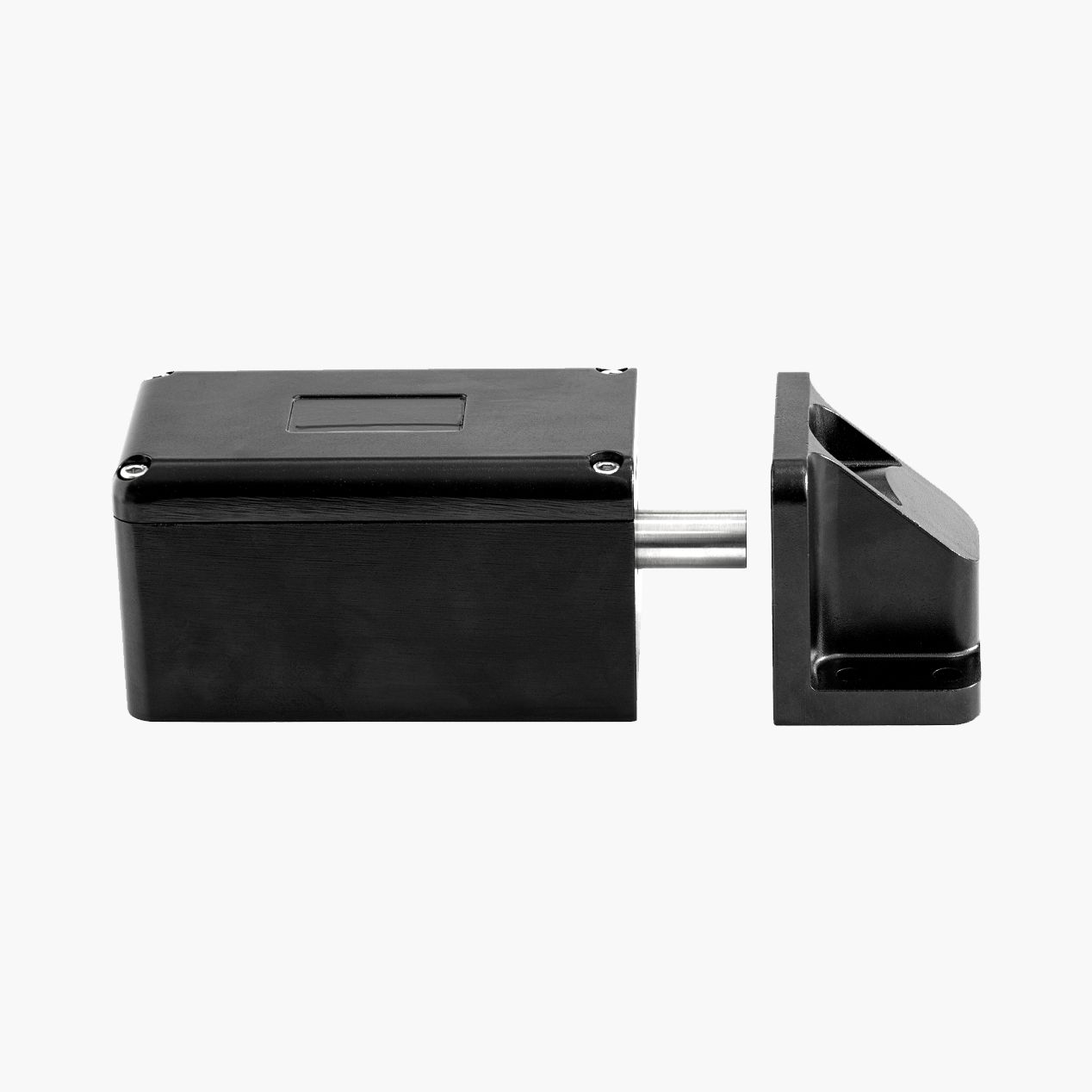

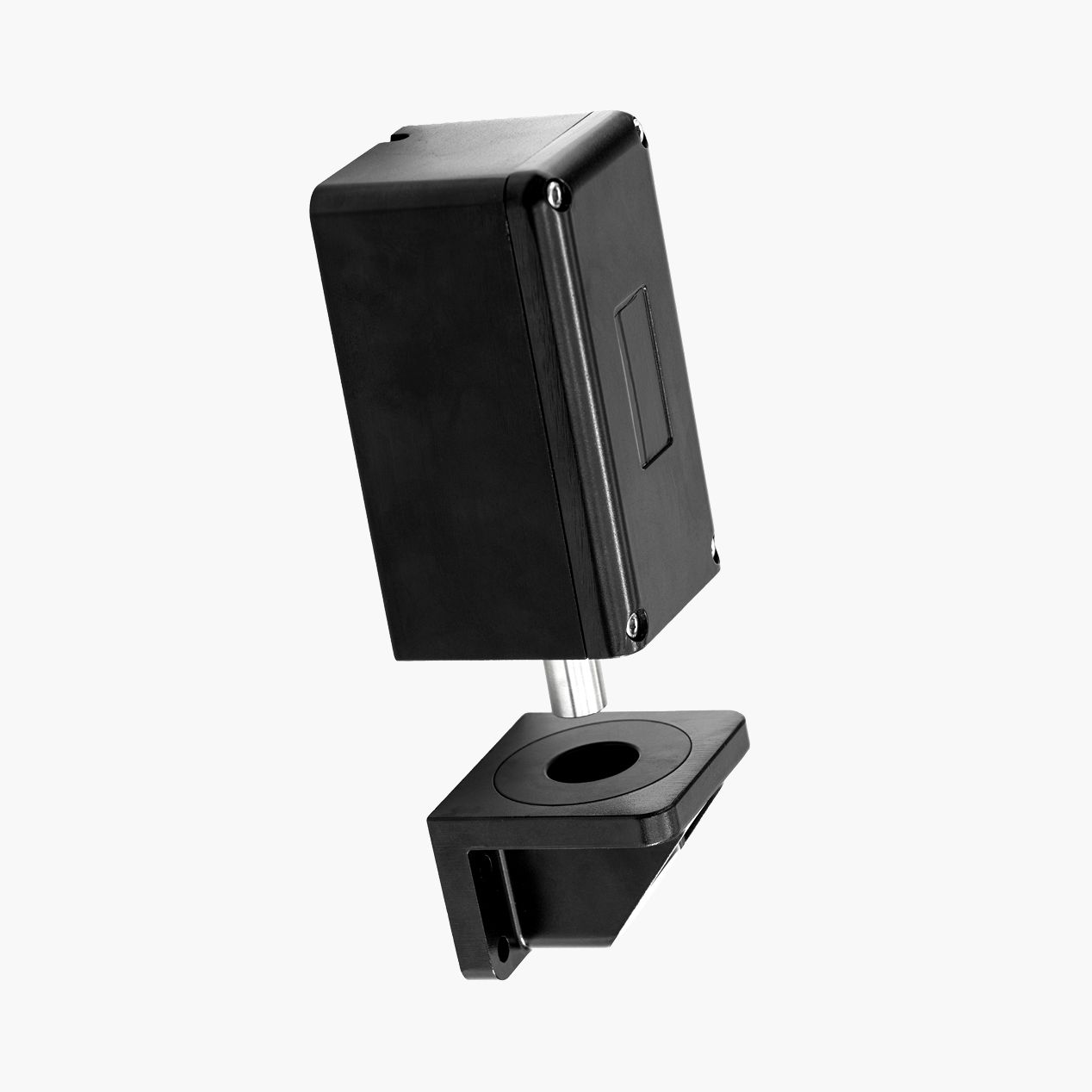

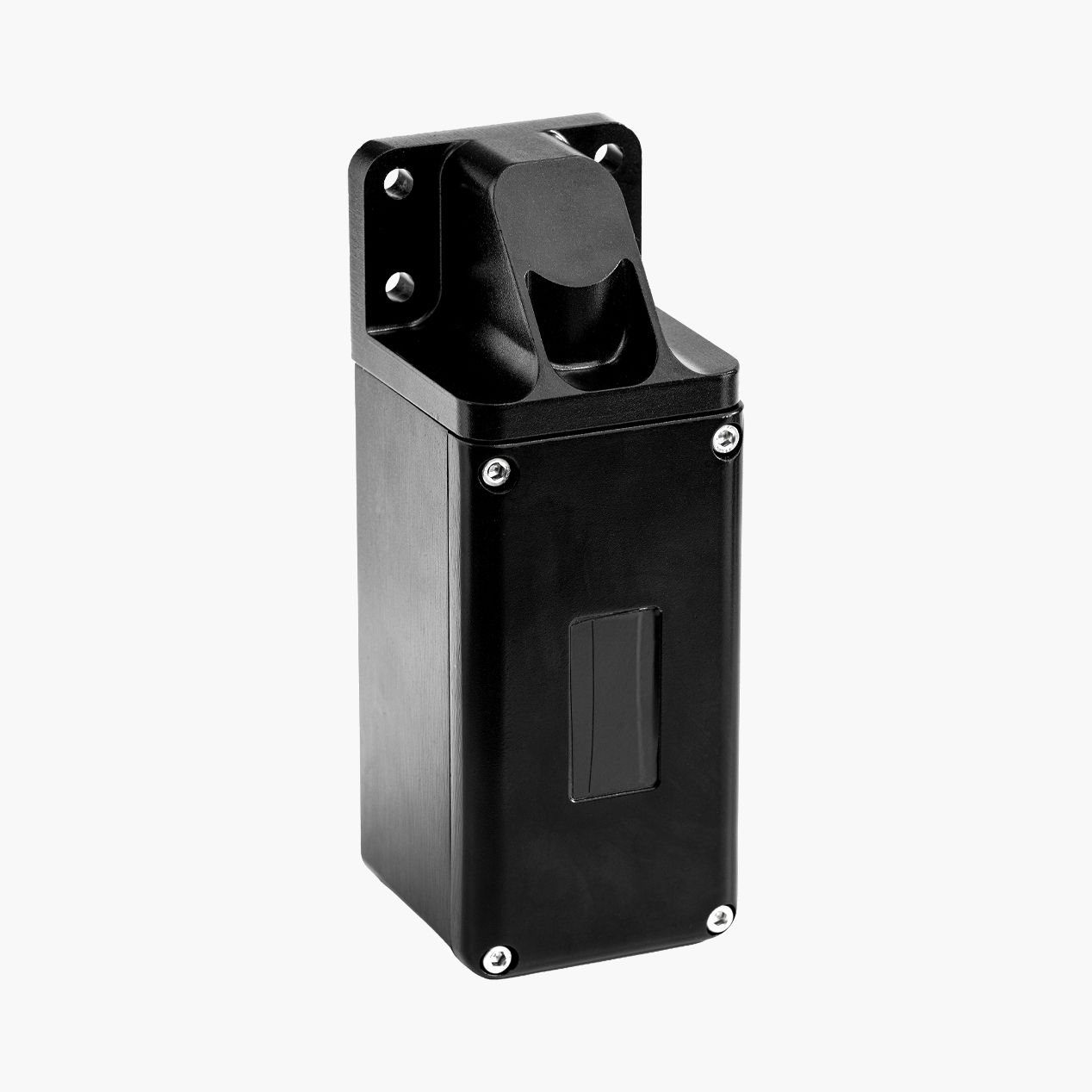

F-Lock
GPS-enabled fixed smart lock enabling permanent security and tracking to containers, trailers and mobile assets.
Make enquiry

F-Lock

Fixed Installation

Download tech specs

Connectivity

Bluetooth Low Energy (BLE 5.2)

Cellular Connection through DoubleL, DoubleL+, Flex, Flex+ and others

Management through People’s Mobile App or People’s platform

Lock characteristics

Strength: 39kN (tensile & shear)

Lock Lifecycle: 300k cycles

Data Security

HTTPS TLS 1.3

Blockchain method

Performance

Water / dust proof IP67

Impact resistant IK08 / IK10

Dynamic Strength 200J (UL1034)

Antirust (EN 1670:2007, Class 4)

UV resistant

Chemicals resistant

Flame-proof

Temp. range: -35°C – 70°C

Battery

Rechargeable, LiFePO4

Up to 3 months autonomy

Connected to vehicle’s power system (12/24V) for automatic charging

Optional: connected to solar panel

Other Features

Data Recording

Real-time events

Flexible design for all types of doors (swing, rolling doors….)

OTA FW update

OTA configuration

Inter-devices communication

Global coverage

Communication with backend system & mobile app

F-Lock is a fixed, high-performance smart locking solution designed for permanent installation on containers, trailers, and critical logistics assets. Built for continuous operation, it delivers robust protection, real-time visibility, and seamless remote control—without requiring manual intervention.
F-Lock Hero

Key capabilities.
Critical advantages.

All-in-one
Fixed smart lock with internal installation for maximum protection and minimal exposure.
Connectivity
Remote locking and unlocking via platform or mobile interface, enabled through Flex or DoubleL.
Real-time intelligence
Tamper detection and door event logging provide continuous monitoring and actionable insights.
Durability
Engineered to withstand impact, harsh environments, and extreme weather conditions.
Long-life power
Extended battery performance with optional connection to vehicle power for uninterrupted operation.
Global tracking
Positioning and data transmission worldwide via Flex and DoubleL connectivity.

Use cases

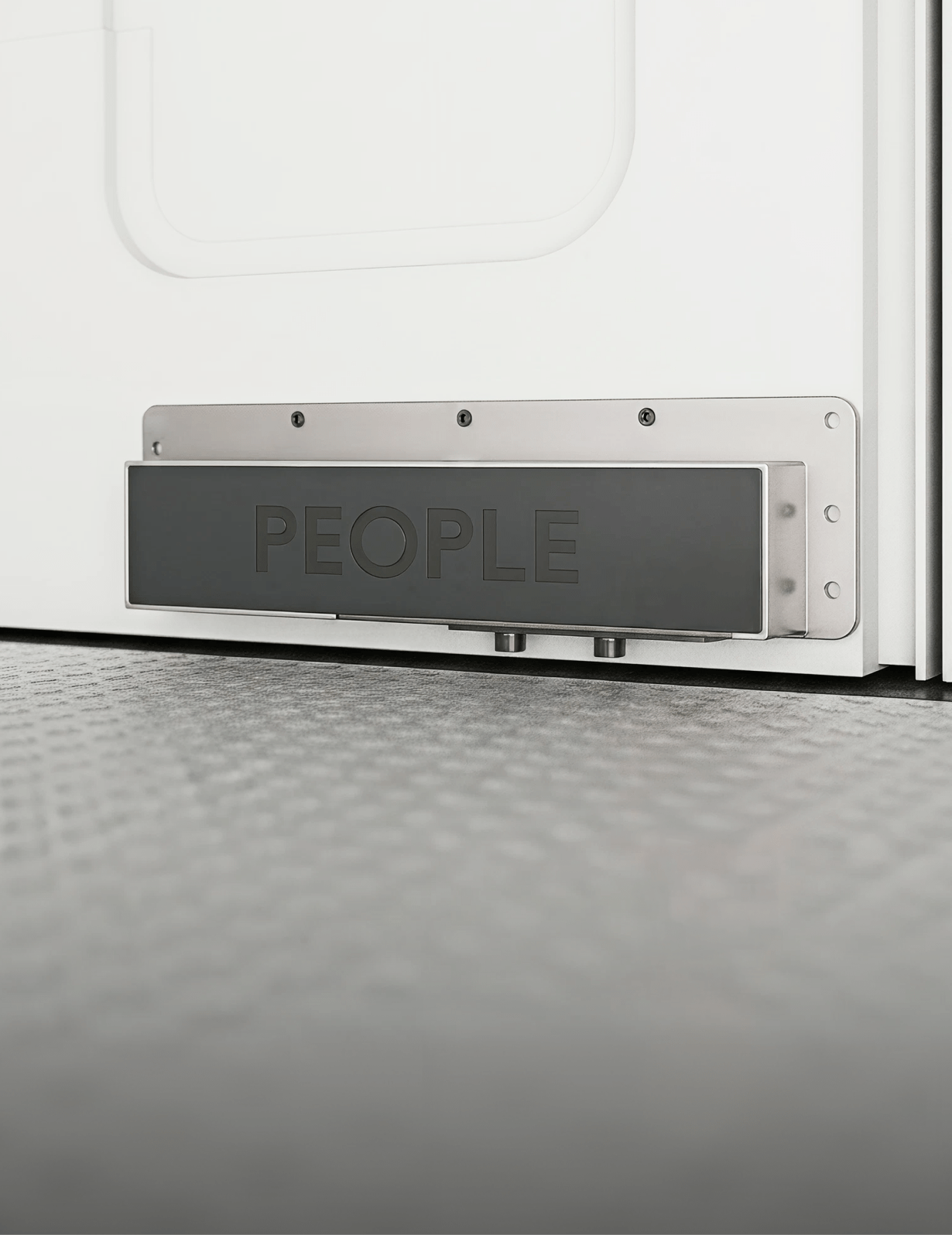

Fixed internal installation for long-term deployment, with no daily handling required.
Permanent smart locking for containers, trailers, and other transport assets, for continuous protection and visibility.

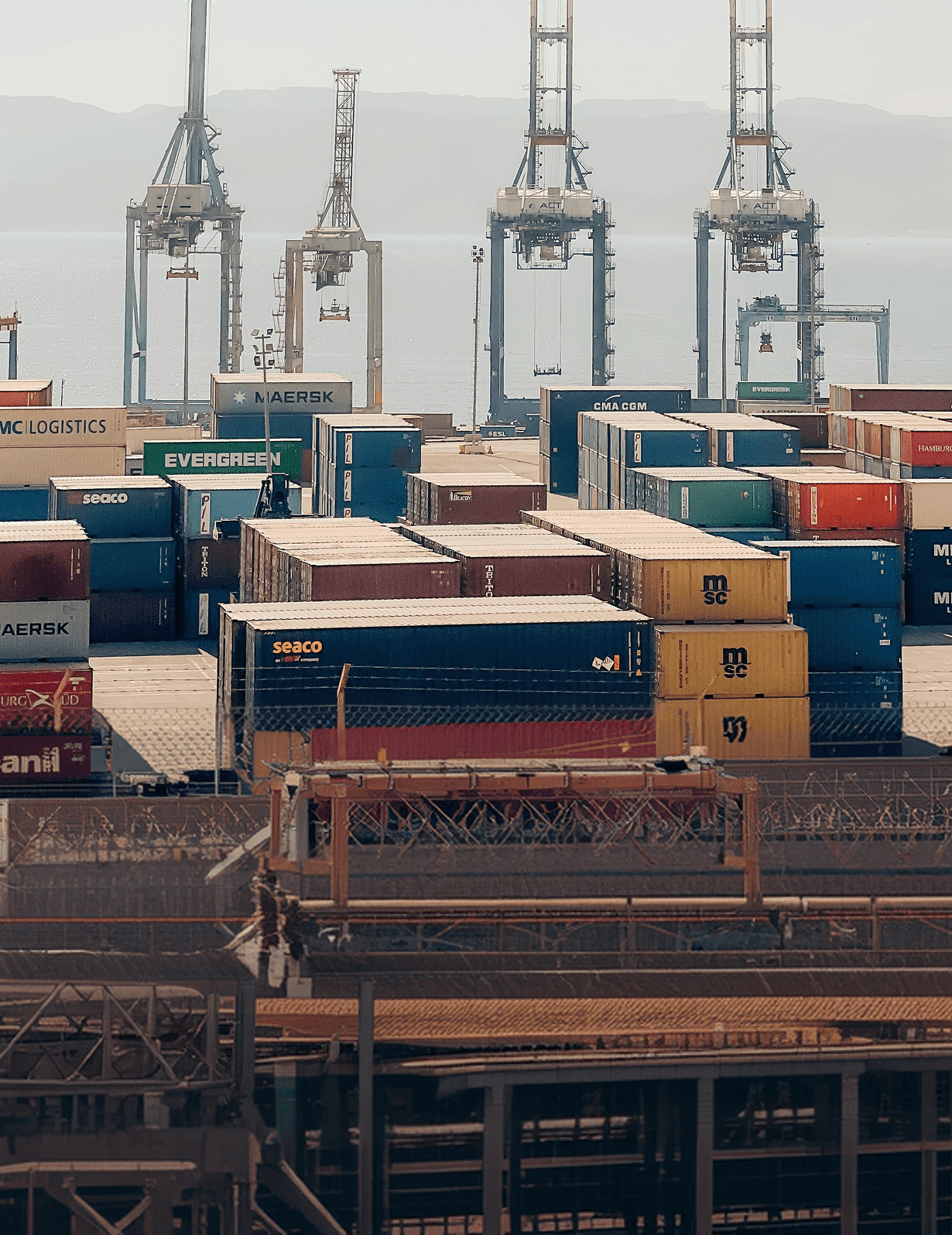

Detect tampering, log door events, and lock or unlock remotely through the platform.

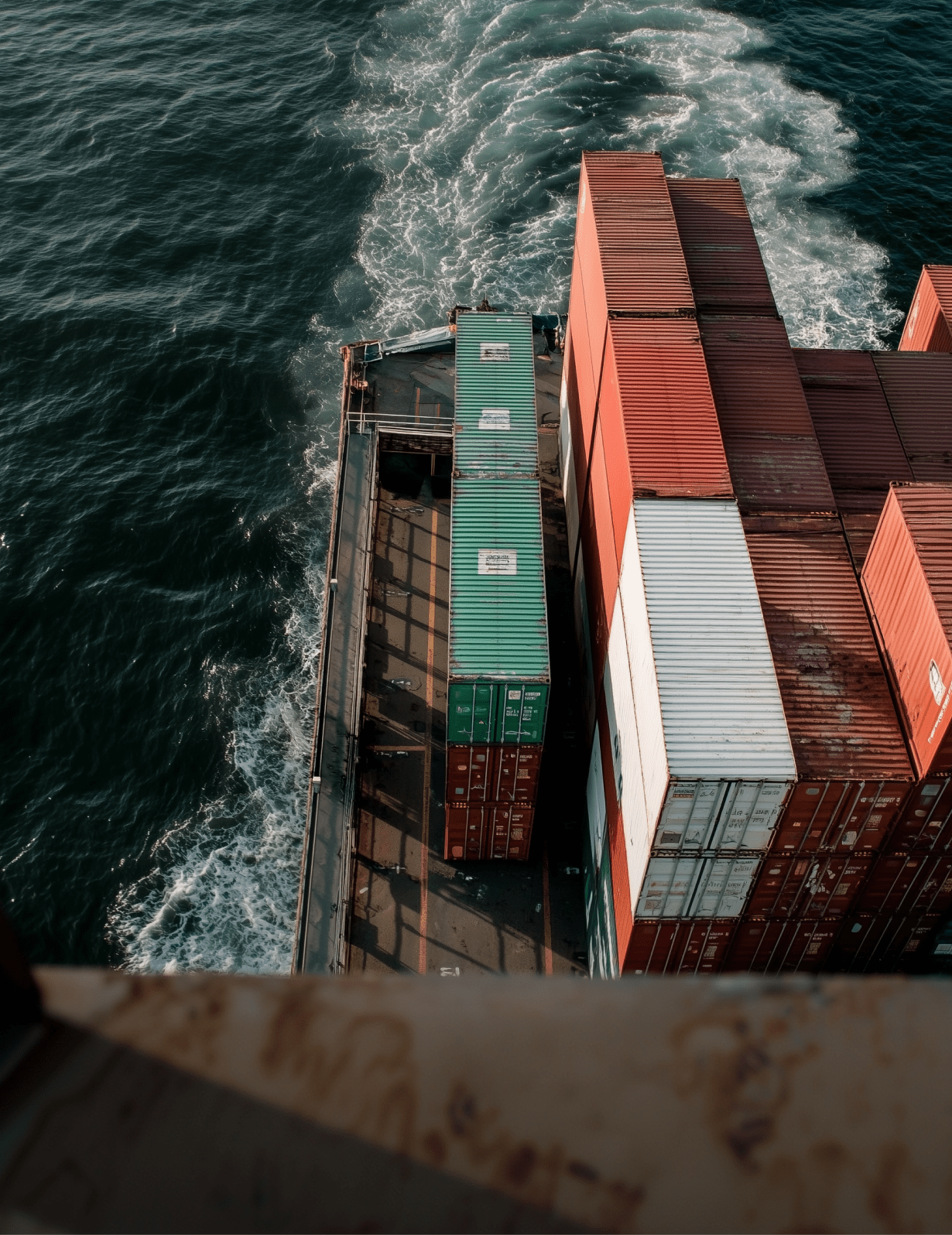

Built for high-risk shipments, with rugged hardware and connected monitoring through Flex or DoubleL.
