Trailer 2.0
Advanced sensors, tamper detection and remote monitoring meet TAPA standards, giving full control and secure cargo protection.
Make enquiry

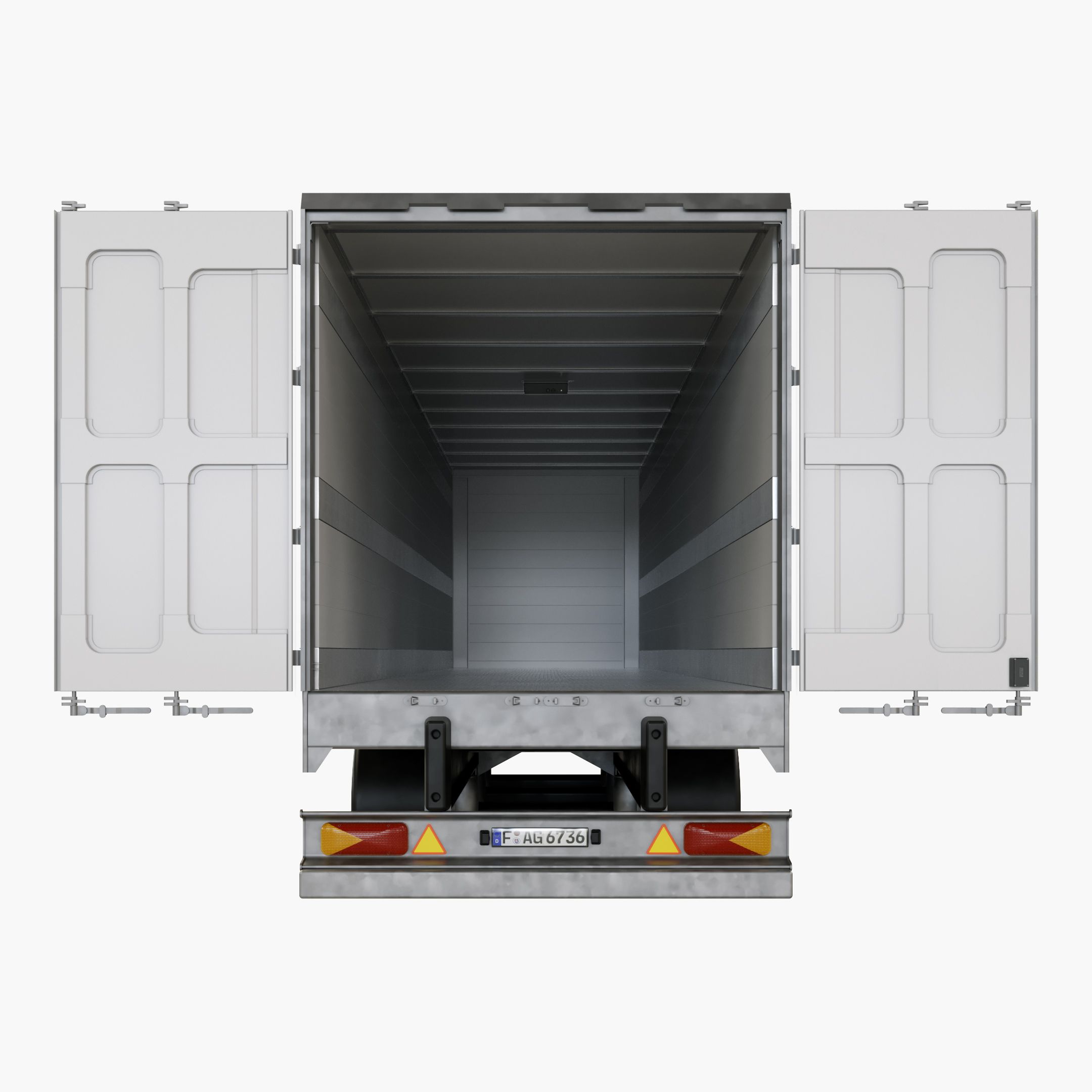

Trailer 2.0

Permanently mounted solution

Download tech specs

Wireless connectivity

4G LTE Cat M1/ GPRS (2G)

Management through People’s Mobile App or People’s platform

Connectivity with external sensors

via Bluetooth

Localization method

Assisted GNSS (GPS, Glonass, Galileo, Beidu)

Cell-locate

Temperature measurement range

-30°C to 60°C (±0.2°C)

Humidity measurement range

0 to 100% RH (±1.5%)

Barometric measurement range

300 to 1200 mbar

Light measurement range

0.008 to 70,000 lux (0.2%)

Camera characteristics*

CMOS VGA color sensor

Images: 160×128 ~ 640×480

Lens: 56°

Power

Rechargeable battery, LiFePO4, lifetime: up to 18 mo. (3mo. for the lock)

Connected to battery charger (12/24V input) for automatic charging via the vehicle’s power system

Optional: connected to solar panel

On-board sensors

Location

Temperature

Humidity

Shock

Platform motion detection

Ext. motion detection*

Atmospheric pressure*

Camera*

Tilt

Hall effect

Light

PIR sensor range*

12m, FOV: 69° x 69°

Sound alarm*

105 dBA@1m, 85dBA@10m

Performance

Water / dust proof IP67

Impact resistant IK08 and IK10

UV resistant

Chemicals resistant

Flame-proof

Lock strength: 39kN

Lock Lifecycle: 300k cycles

Other Features

Recording

Real-time events

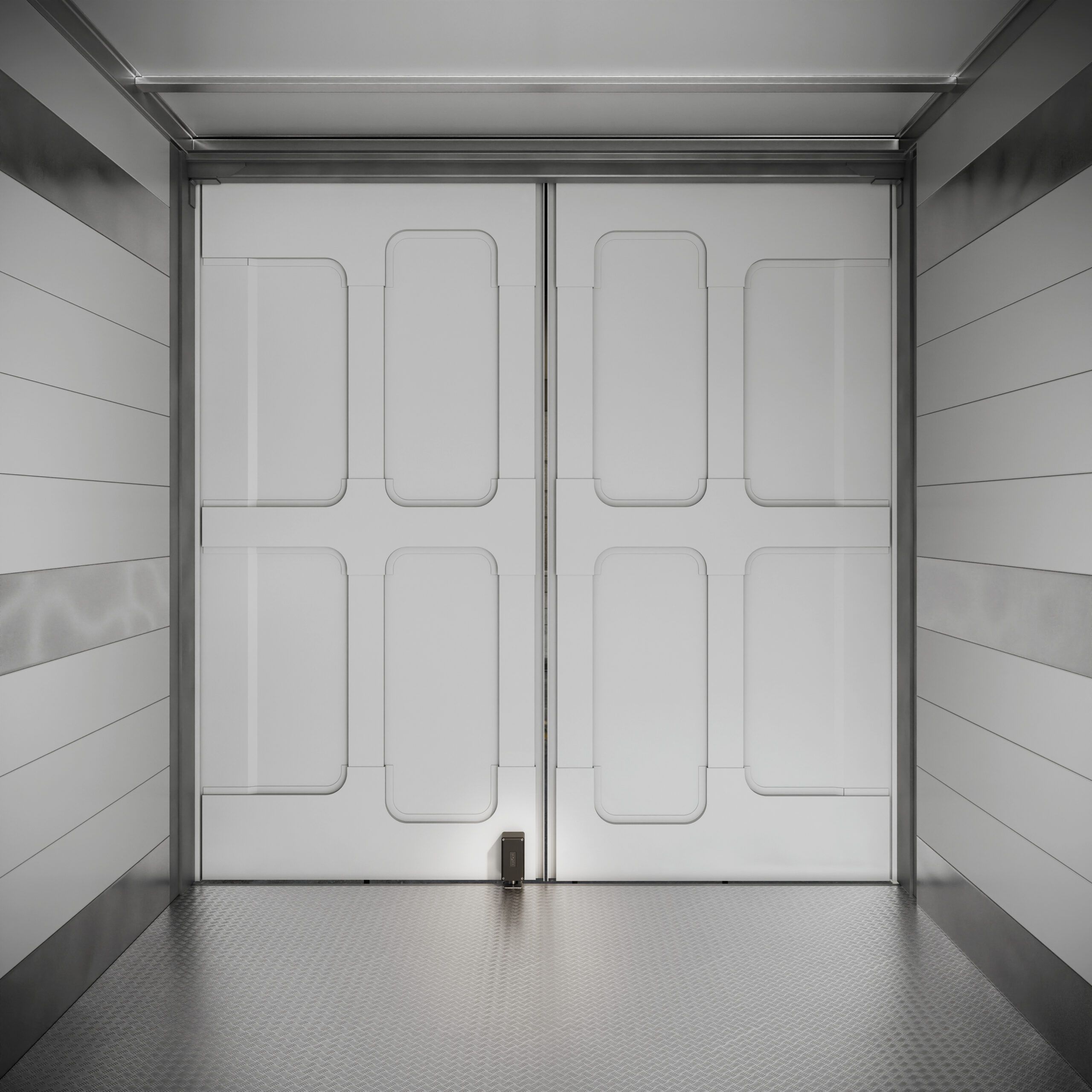

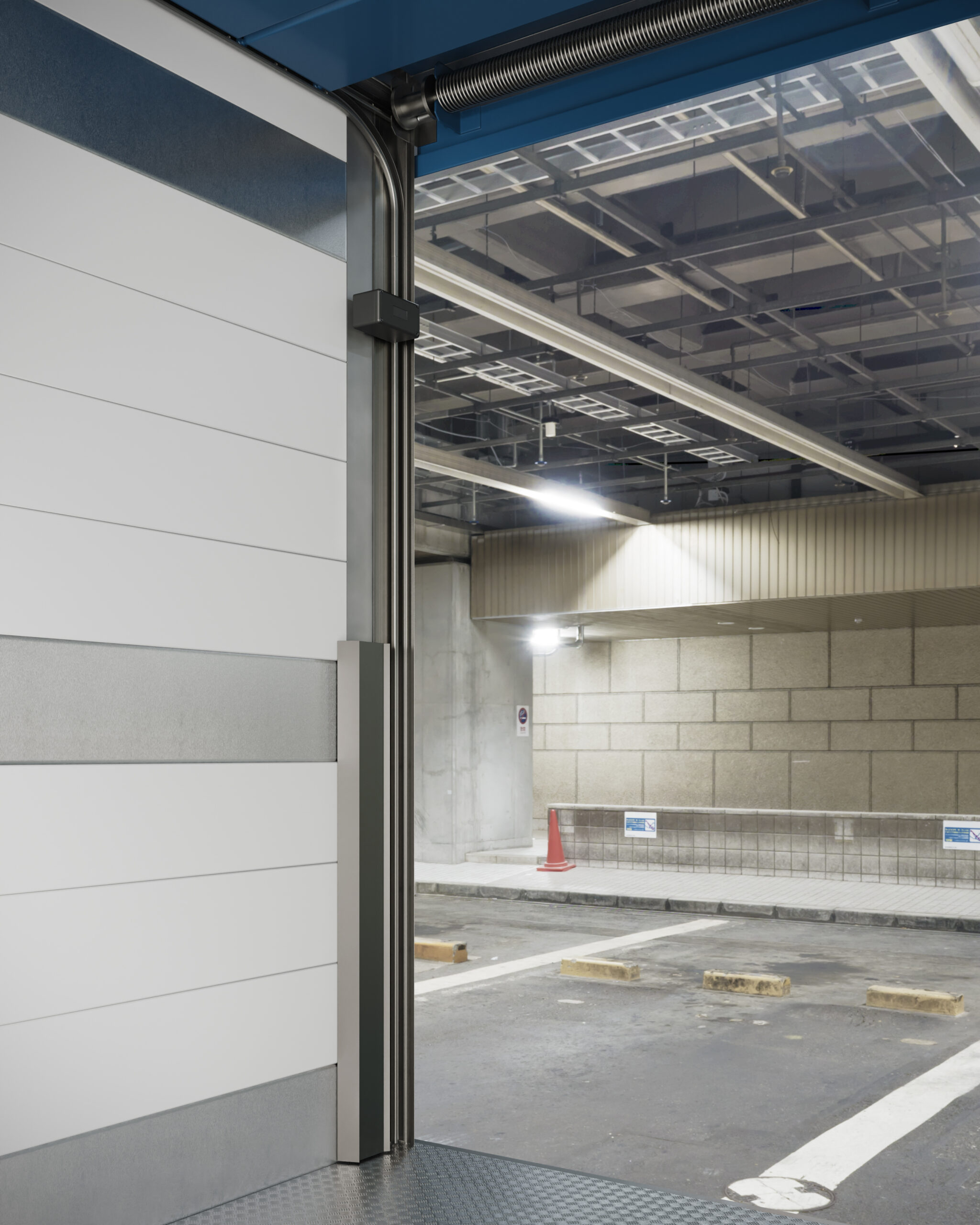

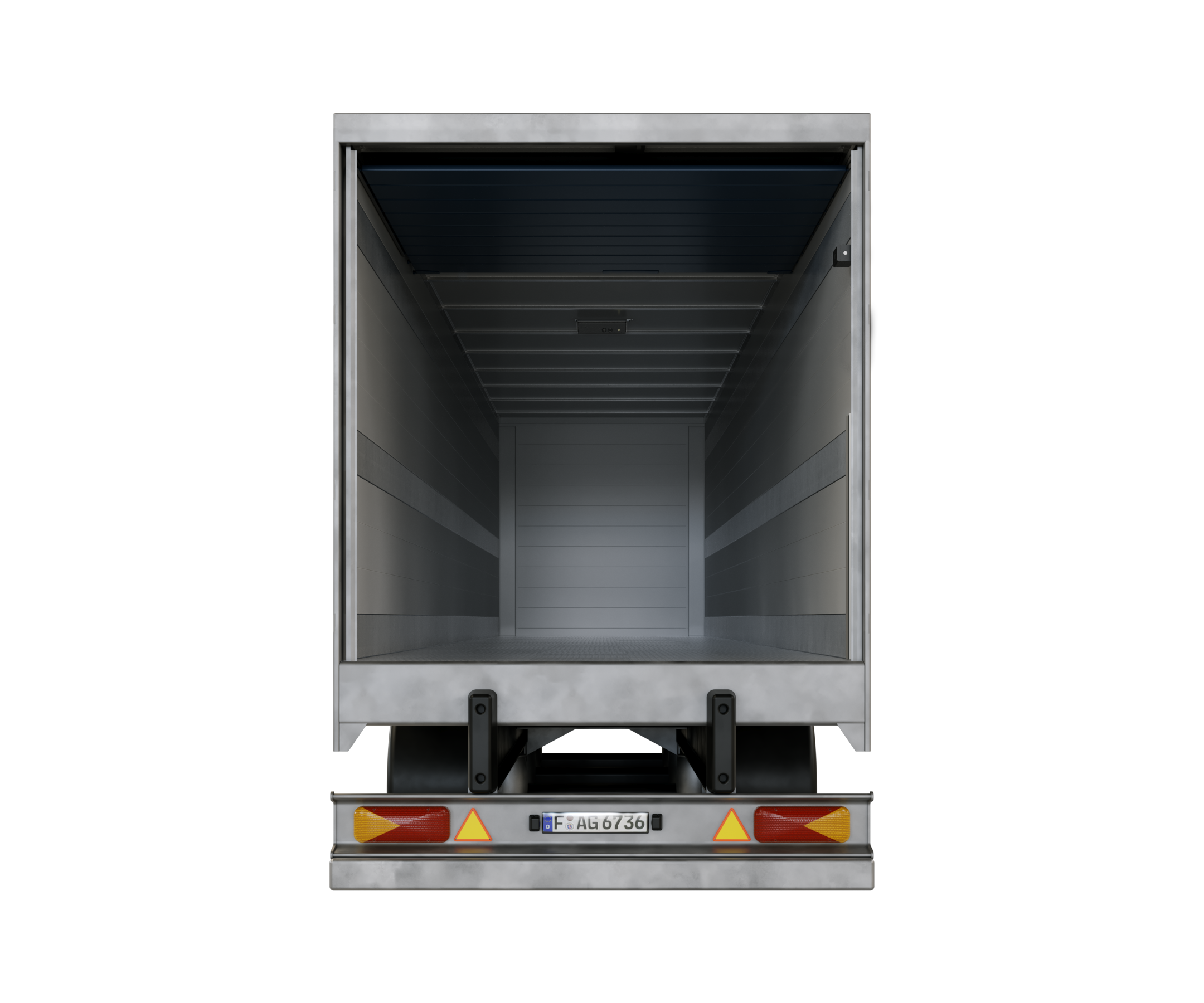

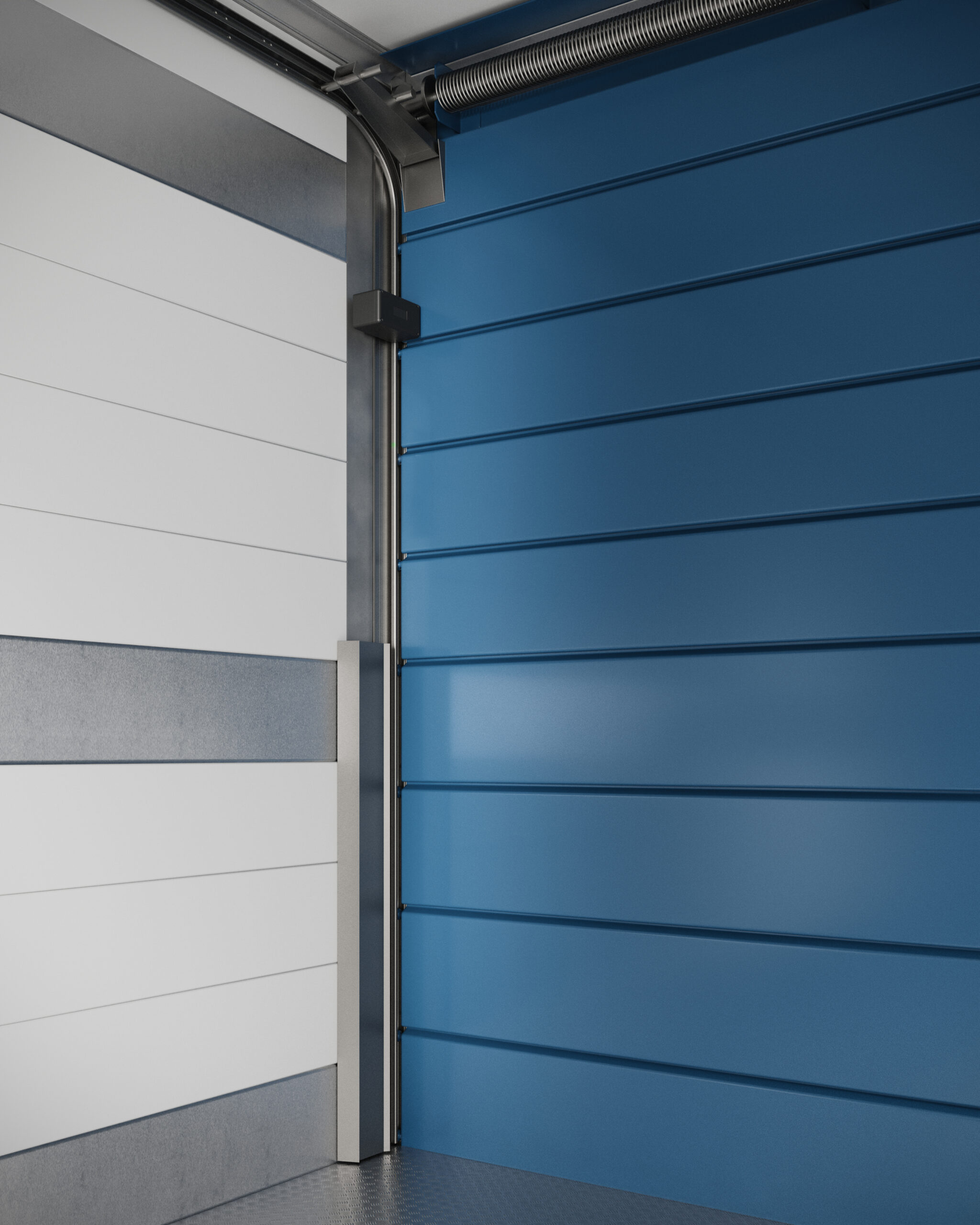

Flexible design for all types of doors (swing, rolling doors….)

OTA FW update

OTA configuration

Intra-device communication

Global coverage

Communication with backend system & mobile app

Trailer 2.0 is a premium smart trailer solution for real-time condition monitoring, route visibility and secure access control. Built with rugged hardware and secure digital infrastructure, it exceeds TAPA TSR standards and delivers enhanced visibility, tamper resistance and operational intelligence for high-value and long-haul cargo. Integrated with the DoubleL device, smart power management and optional Lock, it’s the most advanced trailer security and condition monitoring solution on the market.
Trailer 2.0 Hero

Key capabilities.
Critical advantages.

TAPA compliant
Built to meet and exceed Trailer Security Requirements (TSR 1–3).
Intelligent multi-sensors
Measures temperature, shock, tilt, motion, light, humidity, accelerometer, barometer and PIR.
Built-in camera
Captures photo snapshots of loading, damage or intrusion.
Live data
Real-time location, door monitoring, intrusion detection and condition alerts.

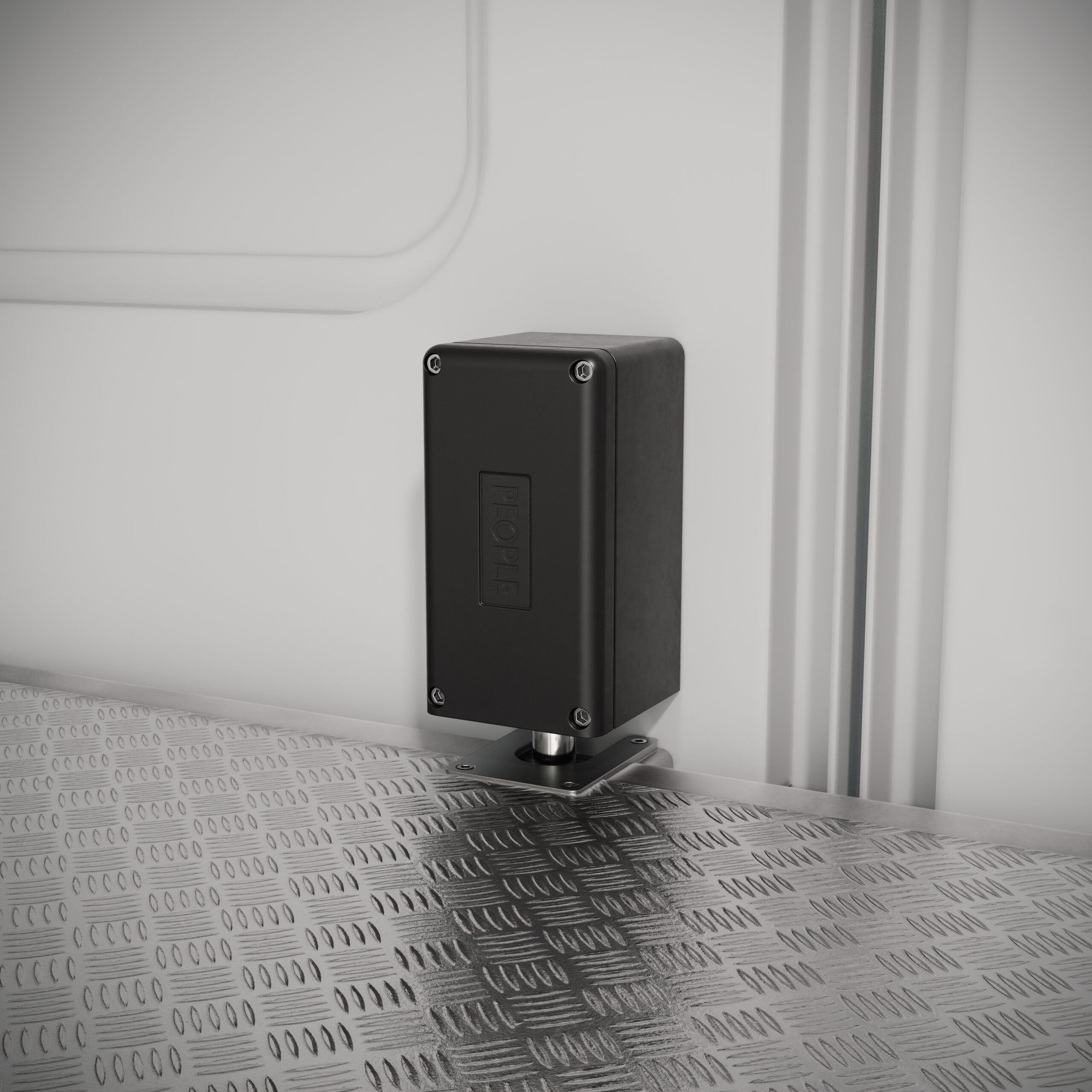

Smart Lock -ready
Compatible with Lock for secure asset management.
Intelligent multi-sensor system
Measures temperature, shock, tilt, motion, light humidity, acceleration, barometric pressure and PIR (passive infrared).
Power options
Long-life rechargeable battery or connection to vehicle power (12/24V)
Cloud platform
Full integration with Omni app for monitoring, reporting and alerts.

Use cases

Designed for operators requiring TAPA TSR1 compliance or higher.
Enables real-time monitoring for sensitive, high-value and regulated cargo.
Designed for trailer fleets requiring secure access logging, environmental visibility and route optimisation.
Captures photo evidence for quality control, inspections and claims management.
