Flex+
A more advanced version of the Flex with an integrated camera — ideal for pallets, boxes, vans and warehouse applications.
Make enquiry

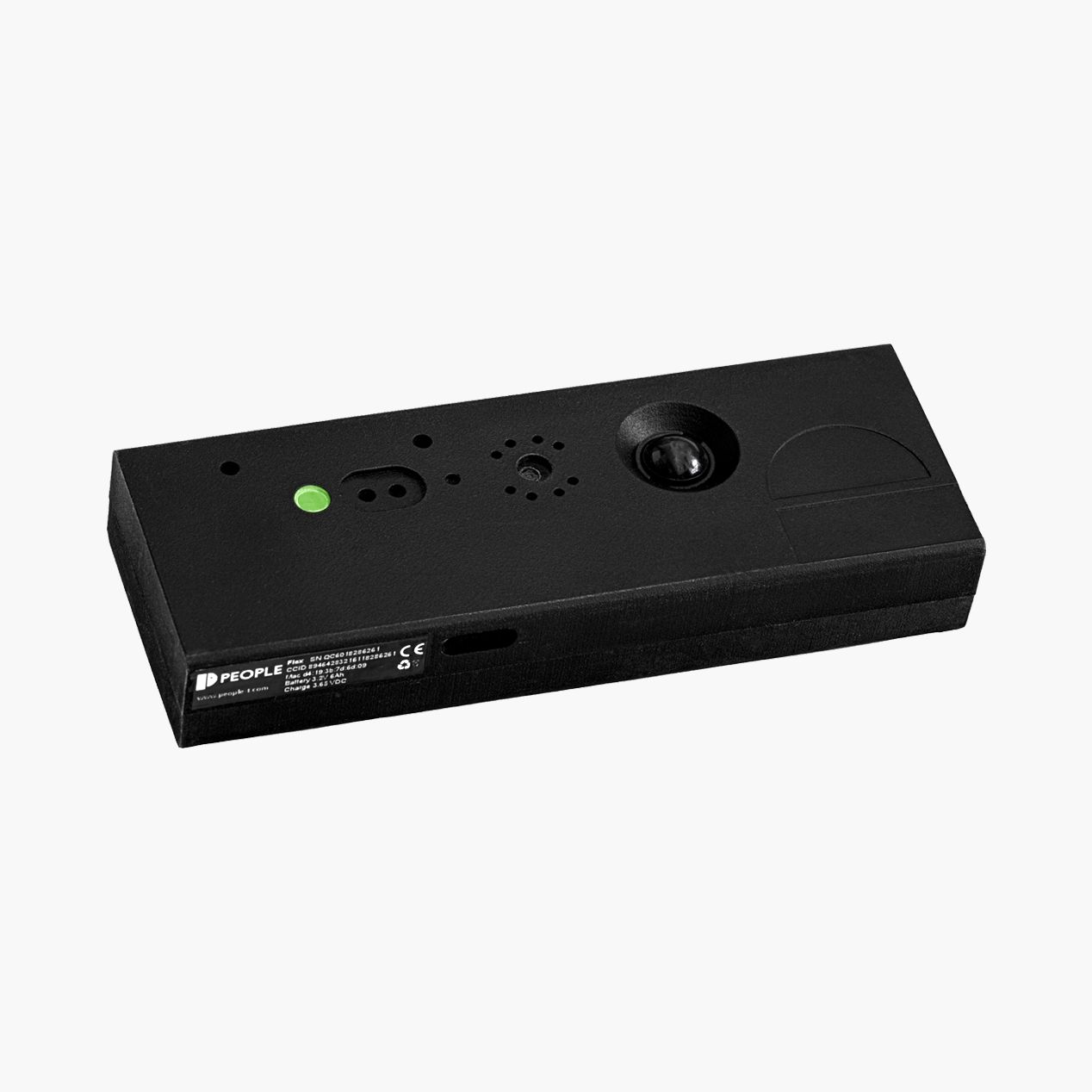

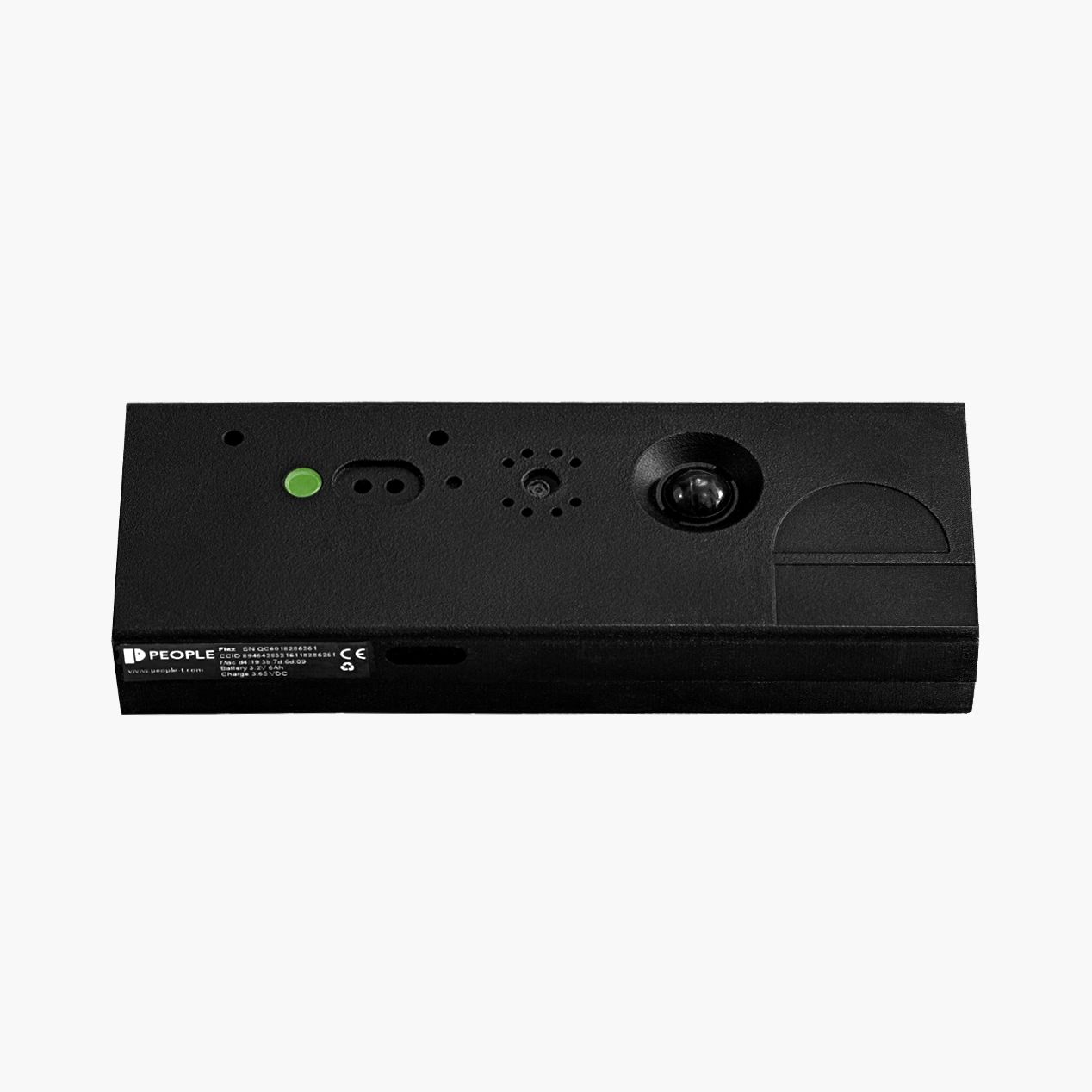

Flex+

Portable, Multi – use device

Download tech specs

Wireless connectivity

4G LTE Cat M1

GPRS (2G)

Connectivity with external sensors

via Bluetooth

Sound alarm

105 dBA@1m, 85dBA@10m

Temperature measurement range

-30°C to 60°C (±0.2°C)

Humidity measurement range

0 to 100% RH (±1.5%)

Barometric measurement range

300 to 1200 mbar

Light measurement range

0.008 to 70,000 lux (0.2%)

Camera characteristics

CMOS VGA color sensor

Images: 160×128 ~ 640×480

Lens: 56°

Battery

Rechargeable LiFePO4

Lifetime up to 5 months

Charging

USB-C Fast Charge 3A/5V

Data Security

HTTPS TLS 1.3

Blockchain method

On-board sensors

Location

Temperature

Humidity

Shock

Platform motion detection

Ext. motion detection

Atmospheric pressure

Tilt

Hall effect

Light

Camera

Localization method

Assisted GNSS (GPS, Glonass, Galileo, Beidu)

Cell-locate

PIR sensor range

12m, FOV: 69° x 69°

Performance

Water / dust proof IP67

Impact resistant IK08

UV resistant

Chemicals resistant

Flame-proof

Other Features

Recording

Real-time alarms

OTA FW update

OTA configuration

Inter-device communication

Global coverage

Communication with backend system & mobile app

Next-generation smart tracking device, purpose-built for real-time visibility, environmental condition monitoring, and integrated camera-based insights across all types of mobile and fixed assets—from containers to boxes and pallets to vans and warehouses.

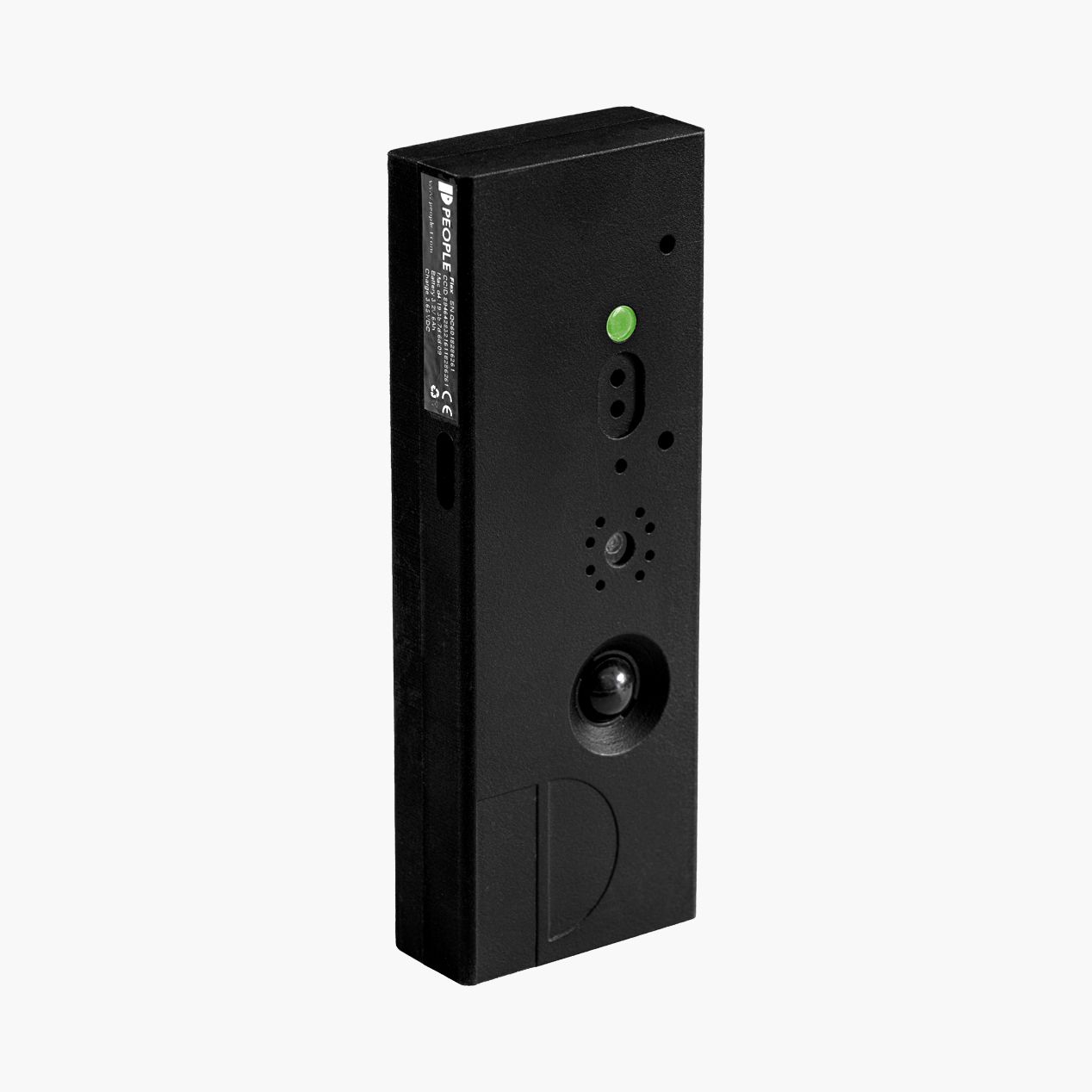

Flex+ Hero

Key capabilities.
Critical advantages.

Intelligent multi-sensors
Measures temperature, shock, tilt, motion, light, humidity, accelerometer, barometer and PIR.
Built-in Camera
Capture photo snapshots of loading, damage or intrusion.
Smart connectivity
Connect with 4G, 2G, NB-IoT and Bluetooth.
Rugged and reliable
IP67 waterproof, impact, UV and chemical resistant.

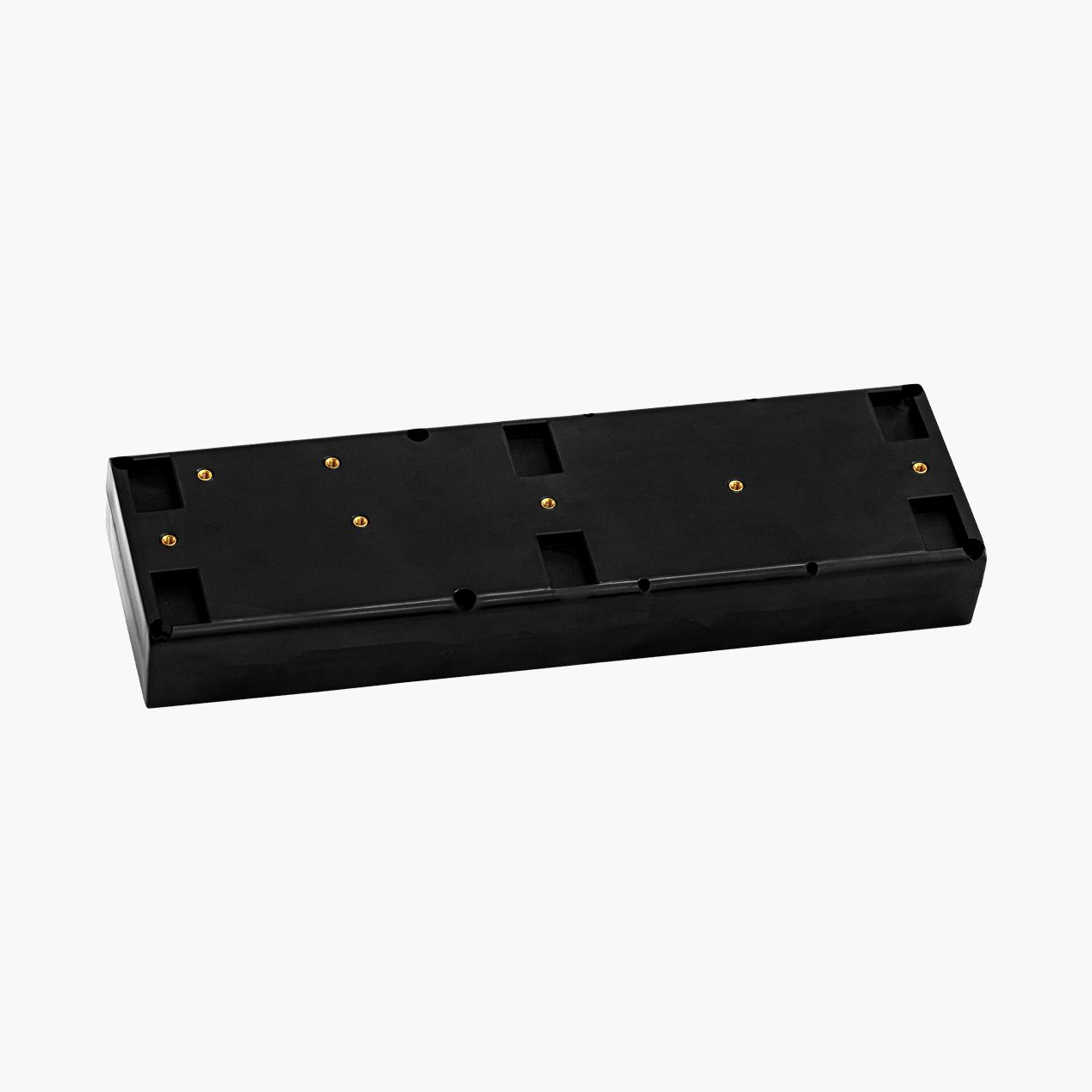

Flexible mounting
Mount via magnets, screws, hook or adhesive.
Smart behavior
Auto motion detection with alarm and configurable intervals.
Cloud platform
Full integration with Omni app for monitoring, reporting and alerts.
Long life battery
Up to 5 months battery life depending on transmission frequency.

Use cases

Real-time tracking of pallets, boxes and cargo for complete visibility and control throughout the supply chain.
Monitors temperature-sensitive goods, including food and pharmaceutical products, to ensure quality, safety and compliance.
Provides visibility and status updates for last-mile deliveries, ensuring accuracy, speed and customer confidence.
Monitors the condition of fixed assets within warehouses and retail environments to maintain performance, prevent downtime and protect value.
Designed for operators requiring ISO-certified, sensor-enabled containers for secure and compliant global operations.
Supports anti-smuggling operations with real-time tracking, tamper detection and full visibility across transported assets.
